TG5D, TG6D, TG7D, TGLB-12, TGLB-16H Truss Dob Covers for horizontal parking position to 90 degrees down

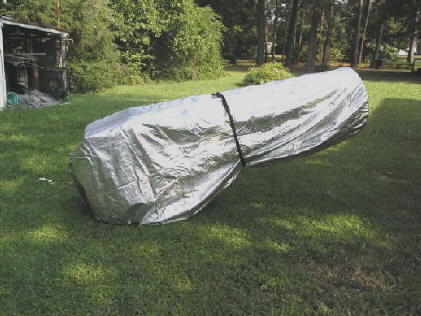

                            Photo of TG5D Courtesy Of Allen Davis

                                  The TG5D, TG6D and TG7D Cover Series

Our large truss Dob Cover series offer large Dob owners the best possible protection available in a scope cover. They provide superior rain and moister protection; they are not just water resistant. They are extremely tough and can provide years of service under normal use.

The TeleGizmos material performance is unaffected by wind, sun, sub-freezing temperatures or UV. The fully aluminized/poly exterior surface will keep your scope significantly cooler on hot summer days translating into much faster cool down times once the sun sets.

Designed to give the best possible fit, these covers have two main connected components: The main tube section is four connected tapered panels, the narrowest point starting at the UTA and then gradually widening to the point of attachment at the rocker box. The rocker section of the cover is boxed shape to conform the general shape of the rocker. All connection seam points are double lapped and micro-stitched. The resulting seam is highly resistant to moister penetration to assure your scope will stay dry under even the hardest rains.

We offer three standard sizes that where developed with the aid of several owners of large truss Dobs and the assistance of Roger Greenwood of AstroCrumb In most cases, our standard sizes will provide you with an excellent fit. However, because of modifications that many Dob owners perform, we can modify any of the standard size covers to meet a specific need. For example, we recently modified a TG5D cover for an owner who had added 10" of extra height to the base of his rocker. We added the extra 10" to a standard TGD5 and as a result was able to provide for his specific cover needs. We offer this service for very little extra cost, often at no charge if the modification is minor. Speak with your dealer or contact us direct for more information.

It is important that you check your scope dimensions to determine your specific size needs. Listed below are the standard cover specifications. Should you determine you need to measure, check the "What to Measure" page for a step by step guide with photos.

TG5D Specs: 18"-20" f4.5 Truss Dob cover for horizontal parking position

Major truss cover length 60", rocker box length 33", combined total length of 93". Rocker section of cover is 33" square, open at the bottom with a draw string. Truss portion has 25" diameter at UTA, with increasing taper to 33" diameter at rocker box. A 1" web strap with a heavy duty adjustable cam lock is provided for additional cover securing or attachment to hold down weights. $149.00

TG6D Specs: 18"-20" f5 Truss Dob Cover for horizontal parking position

Major truss cover length 72", all other components the same as the TG5D. A 1" web strap with a heavy duty adjustable cam lock is provided for additional cover securing or attachment to hold down weights. $159.00

TG7D Specs: 24"-25"  f5 Truss Dob Cover for horizontal parking position

Major truss cover length 89" rocker box 34", combined total length 123". Rocker section of cover: 46" height, 34" length. Truss portion has 32" diameter at top of UTA, with increasing taper to 46" diameter at rocker box. A 1" web strap with a heavy duty adjustable cam lock is provided for additional cover securing or attachment to hold down weights. $179.00

TGLB-12

TGLB-12 is specifically designed for the LightBridge 12" scope, dedicated horizontal park position. $99.00

TGLB-16H

The new TGLB-16H is specifically designed for the LightBridge 16" scope, dedicated horizontal park position. $109.00



The Standard TeleGizmos Solar Scope Covers, when used outside, are intended for temporary exposure periods. For long term continuous 365 outside exposure protection, see the Series 365 Covers.
